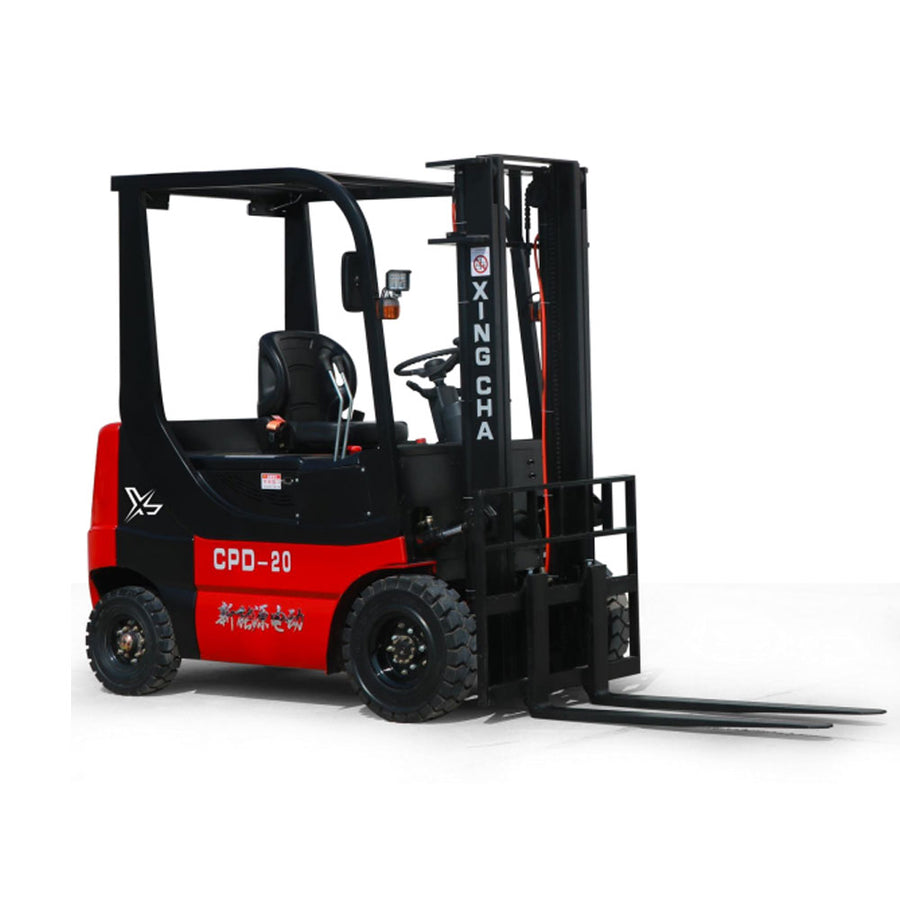

Electric Forklift 2200 lb Capacity 3m Lift Solid Tire

Customization Available. OEM and ODM services.

Production time will take 30 days for any quantity. Shipping, to any part of the world, will take 30 days.

Have your equipment ready to unload.

Description

This electric forklift is designed for efficient material handling in warehouses, factories, and commercial environments. With a 2200 lb lifting capacity and a maximum lift height of 118 inches, it provides reliable performance in compact spaces.

Equipped with solid tires, hydraulic steering assist, and dual electric motors, the unit ensures smooth operation, durability, and low maintenance. Its compact design and tight turning radius make it ideal for indoor use and narrow aisles.

Specifications

Performance

• Rated Load Capacity: 2205 lbs
• Load Center Distance: 19.7 in
• Maximum Lift Height: 118 in (9.8 ft)
• Maximum Working Height: 159.4 in (13.3 ft)

Dimensions

• Overall Length (without forks): 70.9 in
• Fork Length: 42.1 in
• Overall Width: 45.3 in
• Wheelbase: 56.3 in
• Turning Radius: 74.8 in
• Minimum Ground Clearance: 5.9 in

Mast & Structure

• Mast Height (Lowered): 84.6 in
• Overhead Guard Height: 79.5 in

Weight

• Total Weight: 3307 lbs

Wheels & Tires

• Tire Type: Elastic solid tires
• Wheel Configuration: 2 front / 2 rear
• Front Track Width: 41.3 in
• Rear Track Width: 37.4 in

Power System

• Drive Motor: 2.5 kW
• Hydraulic Pump Motor: 1.5 kW
• Motor Control: AC
• Battery Type: Dynamic traction battery

Operation

• Drive Type: Seated (car-type)
• Steering System: Hydraulic power steering
