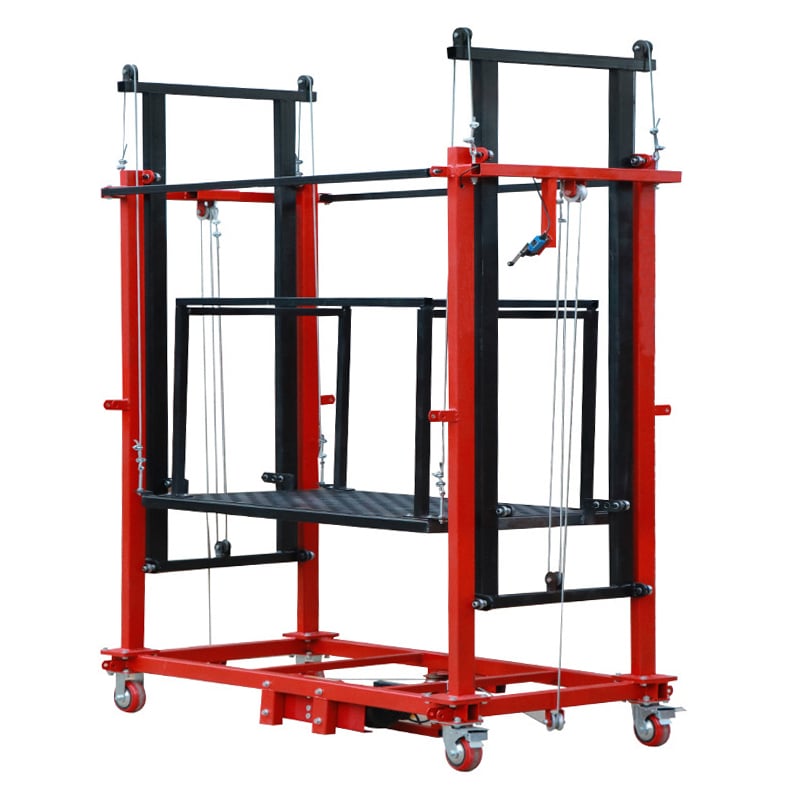

Electric Lift Scaffolding Platform 26ft 660lb Capacity

Customization Available. OEM and ODM services.

Production time will take 30 days for any quantity. Shipping, to any part of the world, will take 30 days.

Have your equipment ready to unload.

Description

This electric lift scaffolding platform is designed for safe and efficient vertical lifting of materials across construction sites, factories, warehouses, and commercial facilities. With a maximum lifting height of 26.2 ft and a standard load capacity of 661 lbs (customizable up to higher capacities), it delivers reliable performance for demanding work environments.

The platform features a 4-section steel mast system with a static height of 9.8 ft, providing stable vertical movement and enhanced safety. Powered by a 4 kW electric motor (PA1000), it offers smooth lifting operation supported by a wire rope system and an integrated anti-fall safety device.

Equipped with guard rails and support legs, this portable scaffolding lift is built for operator safety and jobsite durability. Its wide working platform allows efficient handling of materials, making it suitable for construction, manufacturing, maintenance, retail installations, and industrial services. Certified to CE and ISO 9001 standards, this lifting platform is a dependable solution for professional material handling and vertical access needs.

Specifications

Application:
Lifting goods and materials

Equipment Type:
Electric Lift Scaffolding Platform

Performance

Maximum Lifting Height:
26.2 ft
(8 m)

Static Height:
9.8 ft
(3 m)

Lifting Speed:
49 ft/min
(15 m/min)

Weight Capacity (Standard):
661 lbs
(300 kg)
Custom capacity available upon request

Platform & Structure

Tube Sections:
4 Sections

Platform Dimensions (L × W):
8.0 × 3.5 ft
(2.43 × 1.06 m)

Material:
Heavy-Duty Steel

Sling Type:
Wire Rope

Guard Rail Support Legs:
Yes

Anti-Fall Safety Device:
Yes

Electrical

Motor:
PA1000

Power Output:
4 kW

Voltage:
220 V

Power Source:
Electric

Weight

Machine Weight:
970 lbs
(440 kg)

Packaging & Shipping

Packaging:
Single unit, industrial packing

Shipping Dimensions (L × W × H):
9.35 × 4.27 × 2.79 ft
(2.85 × 1.30 × 0.85 m)

Certification & Warranty

Certifications:
CE, ISO 9001

Warranty:
1 Year
