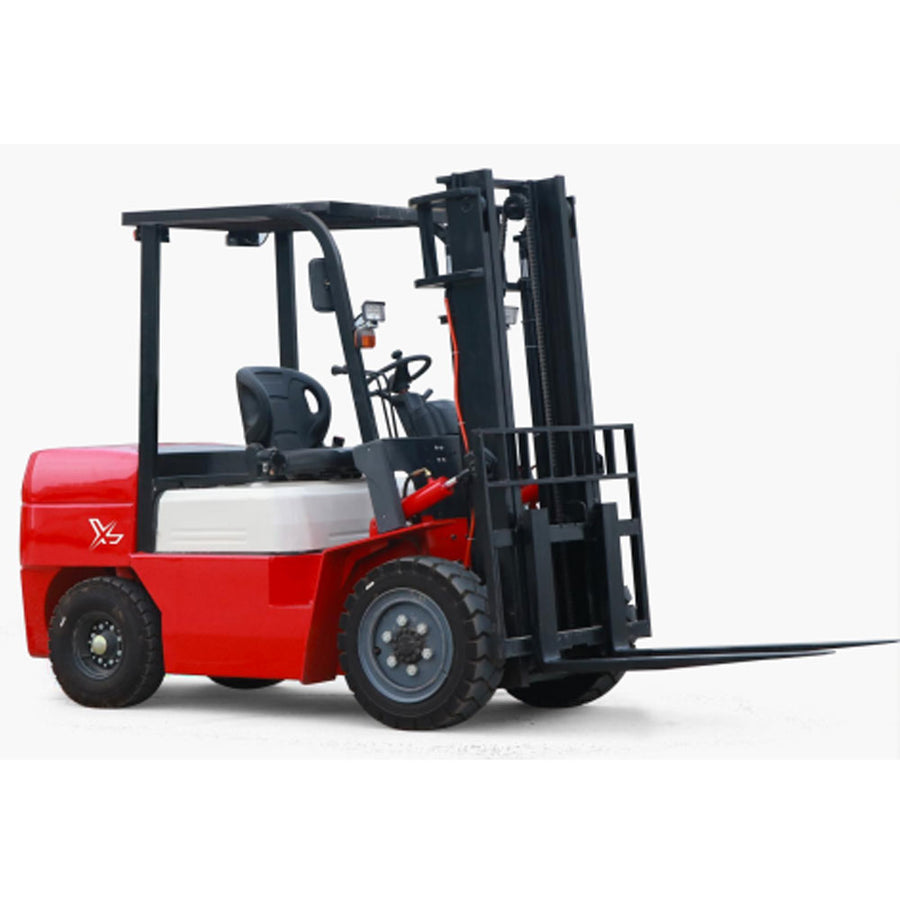

Electric Forklift 7700 lb Capacity 3m Lift Solid Tire

Customization Available. OEM and ODM services.

Production time will take 30 days for any quantity. Shipping, to any part of the world, will take 30 days.

Have your equipment ready to unload.

Description

This heavy-duty electric forklift is built for high-capacity material handling in demanding industrial environments such as warehouses, factories, and logistics operations. With a 7700 lb lifting capacity and a maximum lift height of 118 inches, it is designed to handle large and heavy loads with stability and efficiency.

Constructed with a reinforced steel frame, solid tires, and high-performance AC motors, this forklift ensures durability, strength, and low maintenance. The ergonomic car-type driving system combined with hydraulic power steering provides smooth operation and precise handling, even under heavy-duty conditions.

Specifications

Performance

• Rated Load Capacity: 7716 lbs
• Load Center Distance: 19.7 in
• Maximum Lift Height: 118 in (9.8 ft)
• Maximum Working Height: 161.4 in (13.45 ft)

Dimensions

• Overall Length (without forks): 108.3 in
• Fork Length: 48.0 in
• Overall Width: 47.2 in
• Wheelbase: 61.0 in
• Turning Radius: 112.2 in
• Minimum Ground Clearance: 5.9 in

Mast & Structure

• Mast Height (Lowered): 84.6 in
• Overhead Guard Height: 79.5 in

Weight

• Total Weight: 9480 lbs

Wheels & Tires

• Tire Type: Elastic solid tires
• Wheel Configuration: 2 front / 2 rear
• Front Track Width: 43.3 in
• Rear Track Width: 39.4 in

Power System

• Drive Motor: 13.5 kW
• Hydraulic Pump Motor: 10.0 kW
• Motor Control: AC
• Battery Type: Dynamic traction battery

Operation

• Drive Type: Seated (car-type)
• Steering System: Hydraulic power steering
